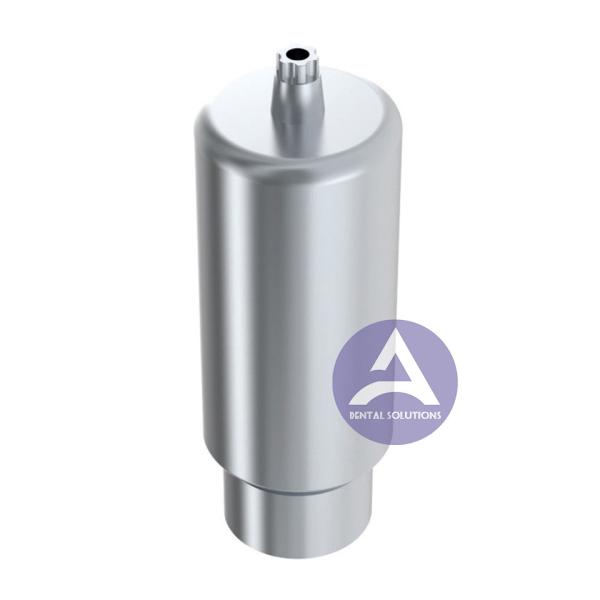

Dentsply Ankylos® Implant Internal Titanium Premill Blank Abutment
10mm Engaging
Dentsply Ankylos®
3.5mm/ 4.5mm/ 5.5mm/ 7.0mm
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Simply efficiency
* Precision machined up to ± 5µm
* Benefit from a faster and controlled turnaround time
* Different diameter available of 10mm, 14mm
Pre-milled Abutment Blanks, you can now produce titanium customised
abutments with your milling equipment.
Boost your efficiency by using your milling machines and benefit
from all major implant connections.
Approved by CE, ISO 9001, ISO 13485
* We also can provide another 3 type of premill as above picture
shown. Welcome to further inquire. Thanks.
Points of Dentsply Ankylos® C/X Implant:
Fig. 1
Ankylos® C/X implants are machined from grade 2 titanium with a
parallel wall geometry. A outside thread pattern consists of
progressively deeper threads towards the apical of the implant and
squared thread edges. Surface roughening is achieved through a
proprietary process called "Friadent® plus". The surface of the
implant is grit blasted, followed by immersing the implant in hot
acid.
Fig. 2
The internal tapered connection dimensions are machined to the same
parameters regardless of the implant diameter, making abutments
theoretically interchangeable from one implant diameter to the
next. Older Ankylos® implants were produced without indexing
feature and are designated as "C" type. New Ankylos® implants are
manufactured with a exiguous indexing feature, designated as "X"
type. Indexed prosthetic components are not compatible with the
older "C" type implants but non indexed prosthetic components are
compatible with "X" and "C" type implants (Fig.1).
