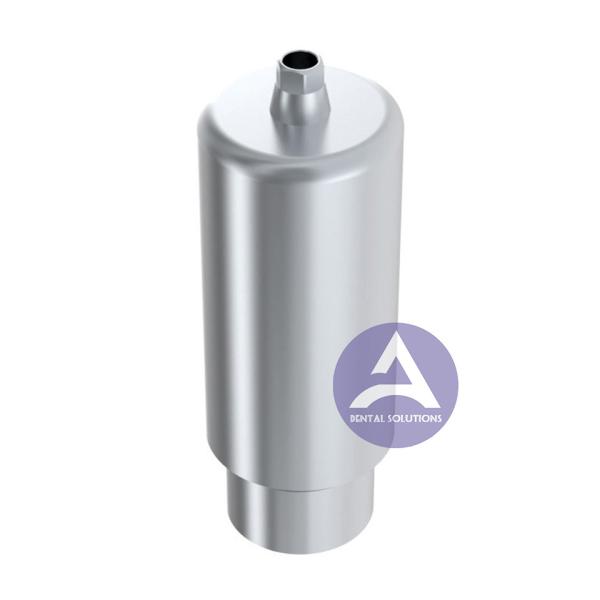

Astra Tech OsseoSpeed® Implant Internal Titanium Premill Blank 10mm Engaging

Yellow(NP 3.0mm) / AQUA(RP 3.5/4.0mm) / LILAC(WP 4.5/5.0mm)

Material:
Ti 6AI-4V ELI (Supply from Germany)

Feature:

* Simply efficiency
* Precision machined up to ± 5µm
* Benefit from a faster and controlled turnaround time
* Different diameter available of 10mm, 14mm

Pre-milled Abutment Blanks, you can now produce titanium customised abutments with your milling equipment.
Boost your efficiency by using your milling machines and benefit from all major implant connections.

Approved by CE, ISO 9001, ISO 13485

* We also can provide another 3 type of premill as above picture shown. Welcome to further inquire. Thanks.

Points of Astra OsseoSpeed™ Dental Implant:

Profile implants are produced with the same grade 4 titanium and surface texture (Fig.4) as standard OsseoSpeed™ implants. The coronal portion of the Profile implant is cut at a 30 ° angle (Fig.5) half way through the diameter of the implant. This feature may allow placement of the implant in to a sloping bony crest without bone grafting or a portion of the implant above or below the bone at the time of implant placement. The implant/abutment interface connection is constructed as a internal, double hex conical connection (Fig.2), allowing 6 different positions for final abutments and machined to the same dimensions regardless of the implant diameter..

TX S Profile implants (Fig.6) are machined with a parallel geometry and a tapered apex. Two outside thread patterns are machined on to the implant body consisting of micro threads at the coronal portion and a regular thread pattern on the main portion of the implant. One implant diameter of 5.0mm, available in lengths of 9, 11, 13, 15 and 17mm comprises the TX S Profile product group.

TX Profile implants (Fig.7) are machined with a parallel main body geometry and a conical crestal portion with a tapered apex. Two outside thread patterns are machined on to the implant body consisting of micro threads at the coronal portion and a regular thread pattern on the main portion of the implant. Two implant diameters of 4.5mm and 5.0mm, available in lengths of 9, 11, 13, 15 and 17mm comprises the TX Profile product group.

         ANGELS Dental Implant Solutions Center is one of the national high-technique enterprise and one of the professional milling center in China, which offers the dentists the best solutions of the highest quality and accuracy in implantology. We integrate R&D, manufacture and sales, and mainly engages in dental implant system, implant surgical tools and digital implant repair products.

        Our focus is on Being a reliable and reputable dental implant parts manufacturer and improving the lives of patients and dentists around the globe by providing complete top quality, innovative and affordable solutions that exceed standards of excellence in the rapidly growing field of dental implantology.

        Our products have passed the test and certification of the German TUV testing agency, and have the ISO13485 certificate. The raw materials used are all major brands in Germany and the United States, which can guarantee better quality, so you have no worries. We have more than 10 precision machining machines, which can respond quickly and meet your order requirements.
