BioHorizons® Dental Implant Internal Premill Blank Abutment 10mm 3.0mm/ NP 3.5mm/ RP 4.5mm/ WP 5.7mm Custom Abutment

BioHorizons®

* 3.0mm

* NP 3.5mm

* RP 4.5mm

* WP 5.7mm

Material:
Ti 6AI-4V ELI (Supply from Germany)

Feature:

* Simply efficiency
* Precision machined up to ± 5µm
* Benefit from a faster and controlled turnaround time
* Different diameter available of 10mm, 14mm

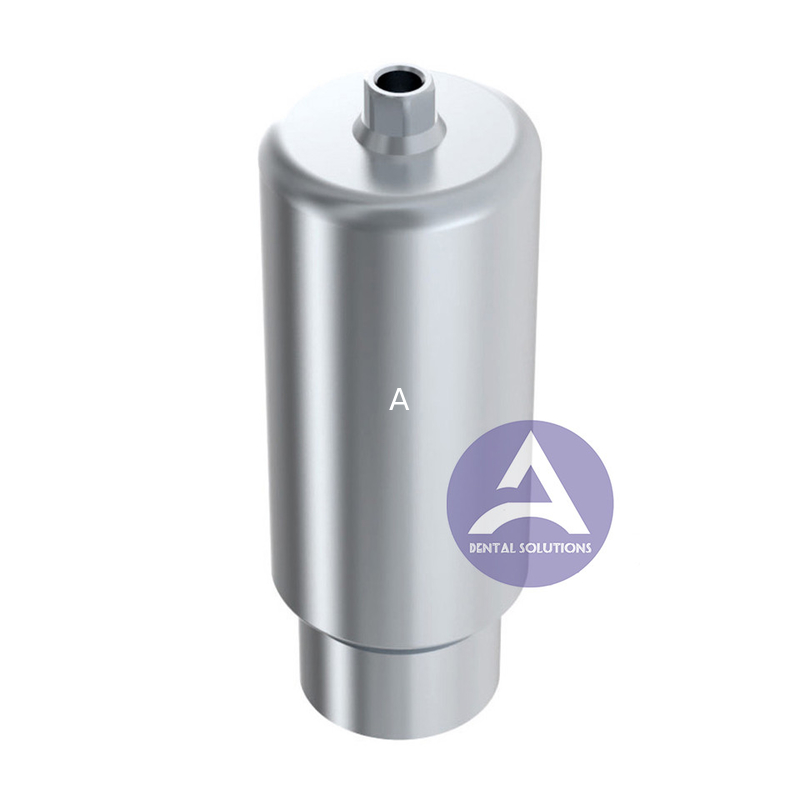

Pre-milled Abutment Blanks, you can now produce titanium customised abutments with your milling equipment.
Boost your efficiency by using your milling machines and benefit from all major implant connections.

Approved by CE, ISO 9001, ISO 13485

* We also can provide another 3 type of premill as above picture shown. Welcome to further inquire. Thanks.

Points of Biohorizons Internal Dental Implant:

Internal hex implants are machined with a parallel geometry, a square tread pattern and tapered apex out of grade 5 titanium. Available with a choice of two surface textures regardless of body diameter size. Resorbable blast textured (RBT) or a hydroxylapatite (HA) coating. Laser-Lok® micron sized channels at the implant neck are an option for RBT surface implants only. A machined collar of 0.5mm separates the platform from the textured body area.

Four implant body diameters (Fig.3) of 3.5, 4.0, 5.0, and 6.0mm are produced for this system with three possible implant/abutment interface platform diameters. 3.5mm body diameter implants have a 3.5mm platform diameter and 4.0mm body diameter implants have a 4.5mm platform diameter. 5.0mm and 6.0mm body diameter implants share the same 5.7mm platform diameter dimension. All components are color coded according to the platform diameter (3.5mm, yellow), (4.5mm, green) and (5.7mm, blue). The four body diameters are offered in four lengths (Fig.4) of 9mm, 10.5mm, 12mm and 15mm. Implants is packaged with a cover screw and already mounted on a 3 inOne abutment which serves as the implant mount for delivery, indirect (closed tray) impression coping and final abutment.

         ANGELS Dental Implant Solutions Center is one of the national high-technique enterprise and one of the professional milling center in China, which offers the dentists the best solutions of the highest quality and accuracy in implantology. We integrate R&D, manufacture and sales, and mainly engages in dental implant system, implant surgical tools and digital implant repair products.

        Our focus is on Being a reliable and reputable dental implant parts manufacturer and improving the lives of patients and dentists around the globe by providing complete top quality, innovative and affordable solutions that exceed standards of excellence in the rapidly growing field of dental implantology.

        Our products have passed the test and certification of the German TUV testing agency, and have the ISO13485 certificate. The raw materials used are all major brands in Germany and the United States, which can guarantee better quality, so you have no worries. We have more than 10 precision machining machines, which can respond quickly and meet your order requirements.
