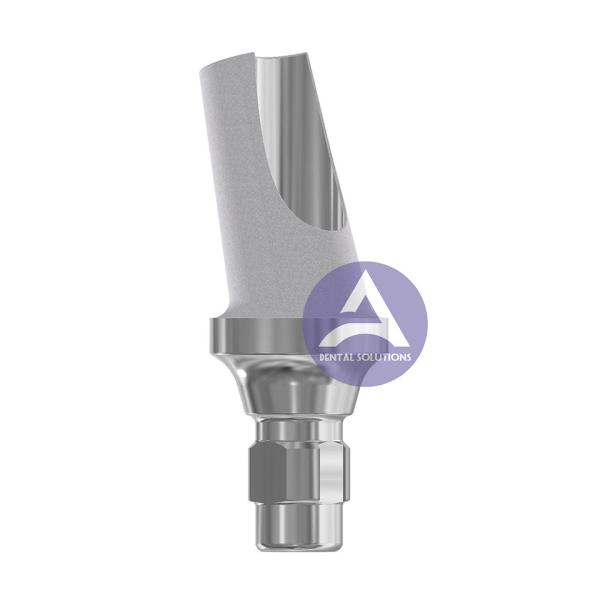

ITI Straumann Bone Level® Titanium Angled Abutment

NC 3.3mm/ RC 4.1mm -- 15°/25° Degree

Desciption:

This angled abutment comes with a screw that takes the Straumann® Torx driver

This abutment is prep-able with a 1mm/2mm/3mm collar height. (Or according your customize request)

Material:
Ti 6AI-4V ELI (Supply from Germany)

Feature:

* Titanium interface abutment
* 1pc Screw Included

* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility

* Can production Custom interface

Approved by CE, ISO 9001, ISO 13485

Points of ITI Straumann Bone level Angled Abutment:

Narrow connection (NC) Implant/abutment platform diameter abutments can be categorized in to four groups, anatomic, gold (UCLA), ceramic and "cementable". Anatomic, gold and ceramic abutments are intended to be selected and modified extra orally on a master model after a fixture level impression (direct, indirect).

Anatomic titanium abutments (Fig.8) are machined as a straight and a angled (15°) version. Each abutment is available in two collar heights (2mm, 3.5mm) and the angulation of the angled abutment is machined in relation to the vertex of the indexing quadrigon (square).

Regular connection (RC) platform diameter abutments can be categorized in to four groups, anatomic, gold (UCLA), ceramic and "cementable". Anatomic, gold and ceramic abutments are intended to be selected and modified extraorally on a master model after a fixture level impression (direct, indirect). "Cementable" abutments are envisaged to be installed on to the implant and impressed with the abutment level impression technique, much like solid abutments for tissue level implants.

Anatomic titanium abutments (Fig.12) are machined as a straight and a angled (15°) version. Each abutment is available in two collar heights (2mm, 3.5mm) and the angulation of the angled abutment is machined in relation to the flat side of the indexing quadrigon (square). Through and through indexed ceramic (IPS e.max®) abutments (Fig.13) are available in two shades (MO 0, MO 1), two angulations (0°, 15°) and two collar heights (2mm, 3.5mm).

         ANGELS Dental Implant Solutions Center is one of the national high-technique enterprise and one of the professional milling center in China, which offers the dentists the best solutions of the highest quality and accuracy in implantology. We integrate R&D, manufacture and sales, and mainly engages in dental implant system, implant surgical tools and digital implant repair products.

        Our focus is on Being a reliable and reputable dental implant parts manufacturer and improving the lives of patients and dentists around the globe by providing complete top quality, innovative and affordable solutions that exceed standards of excellence in the rapidly growing field of dental implantology.

        Our products have passed the test and certification of the German TUV testing agency, and have the ISO13485 certificate. The raw materials used are all major brands in Germany and the United States, which can guarantee better quality, so you have no worries. We have more than 10 precision machining machines, which can respond quickly and meet your order requirements.
