Mini Regular Stainless Steel Osstem GS Dental Implant Analogue

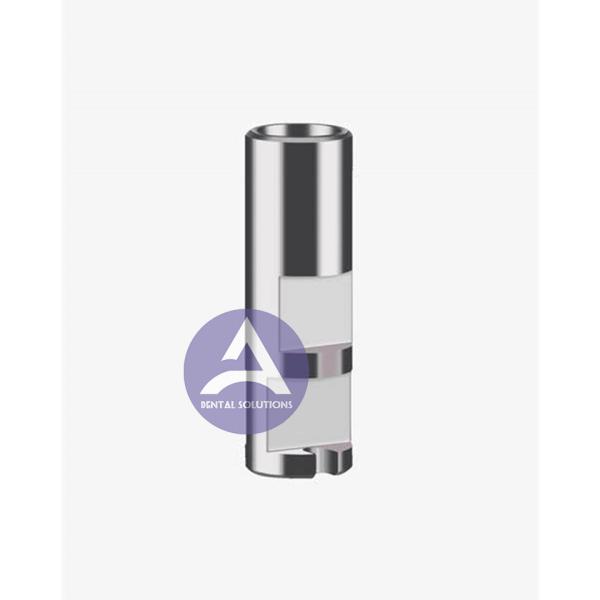

Osstem GS(TS)® Internal Dental Implant Analogue

Mini / Regular

Material:

Stainless Steel 303F / Titanium GR5

Feature:
* Reproducibility
* Precision machined up to ± 5µm
* Position indicator & Level stopper for 3D print & Stone model
* Anti-rotate design

Head that reproduces the implant system joint.
Position indicator and level stopper support precise positioning of removable gingiva mask.
Gentle retaining area to easily position the soft gum in the working model.
Effective circuit and self-locking cross retainers that, inside the plaster, provide extraordinary embedding even in cases of abutment drilling on model.
Its discrete size means that analogues can be easily fitted, despite the implants being close together or not parallel.

Approved by CE, ISO 9001, ISO 13485

Osstem GS(TS) Analogue Prosthetic procedure:

Prepare a custom open tray, predict the vertical space, abutment diameter, type (hex, non-hex) and select an impression
coping. Gently connect the guide pin using a 1.2 Hex hand driver manually. Do not forget to take an x-ray to check the
exactness of the coping connection. Inject impression material around the hole of the upper part of the coping and loosen the
guide pin after the material has set to remove the impression body. Connect a fixture lab analog of identical connection.
