    Astra Tech EV® UCLA CoCr Base Castable Abutment 3.6mm(Purple)/ 4.2mm(Yellow)/ 4.8mm (Blue)

    Ask Lasest Price
    Brand Name : ANGELS
    Model Number : Astra Tech EV®
    Certification : TUV CE, ISO13485, ISO9001
    Price : USD8~12/pc, included screw
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500,000pcs/month
    Delivery Time : 3~5 days
    • Product Details
    • Company Profile

    Astra Tech EV® UCLA CoCr Base Castable Abutment 3.6mm(Purple)/ 4.2mm(Yellow)/ 4.8mm (Blue)

    4.2mm Yellow Astra Tech EV Plastic UCLA Implant Abutment

    Astra Tech EV® UCLA CoCr Base Castable Abutment
    3.6mm(Purple)/ 4.2mm(Yellow)/ 4.8mm (Blue) (Engaging & Non-Engaging)

    Material:
    CoCr base and castable plastic chimney

    Made of CoCr base and castable plastic chimney material for the stable retention of modelling materials
    This base is available in two types of platforms: engaging and non-engaging.

    Approved by CE, ISO 9001, ISO 13485

    Astra Tech EV® UCLA CoCr Base Castable Abutment 3.6mm(Purple)/ 4.2mm(Yellow)/ 4.8mm (Blue)

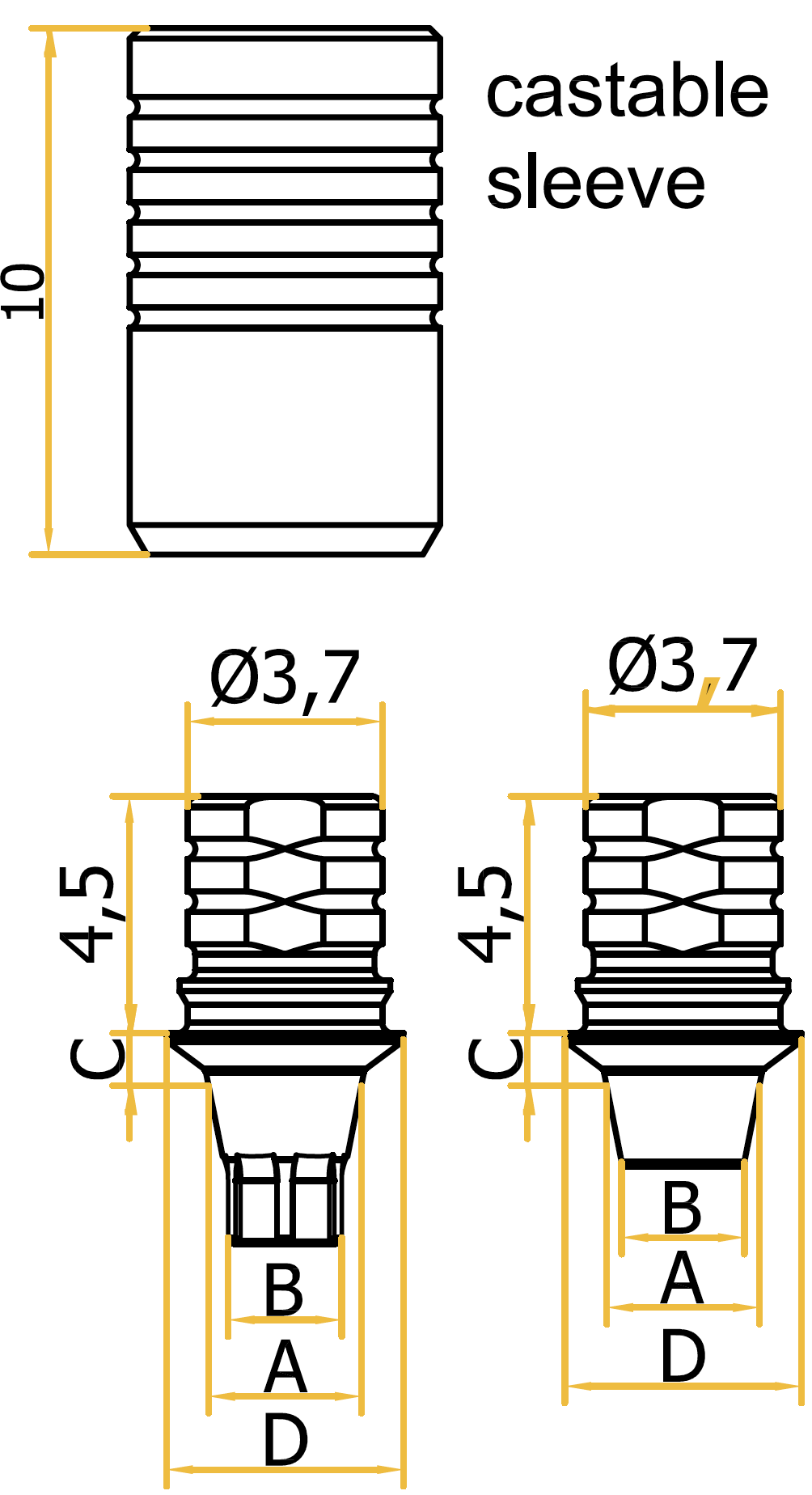

    Pilar Ang- Con-Bl.png

    Base CrCo

    A

    B

    C

    D

    30.059EV 3.6Non-engaging2,90Circular1,004,50
    31.059EV 3.6Engaging2,90Conic Evo1,004,50
    30.060EV 4.2Non-engaging3,50Circular1,004,50
    31.060EV 4.2Engaging3,50Conic Evo1,004,50
    30.061EV 4.8Non-engaging4,10Circular1,004,90
    31.061EV 4.8Engaging4,1Circular1,004,90
    30.058EV UniabutmentNon-engaging3,41Cone 66º0,854,40



    Points of Astra Tech EV UCLA Cocr base:

    ■ Single, partial and fully edentulous situations
    ■ All positions in the mouth
    ■ Screw-retained restorations, limited to single-tooth only


    Note: In cases where high biteforces are expected it is recommended to select a titanium abutment if possible. CastDesign EV should primarily be regarded as an abutment used when no titanium option is available.

    The CastDesign EV is a non-oxidizing high precious abutment modified at the laboratory. CastDesign EV is for fabrication of a customized abutment for cement-retained restorations, using regular wax-up and cast-to techniques.

    ■ Can compensate for angulations up to 30°
    ■ Abutment Screw EV is color-coded


    Note: For screw-retained restoration, CastDesign EV shall be used for single-tooth applications only. Use of this product outside the listed indications will compromise the function of the Conical Seal Design and void the Dentsply Sirona implant warranty.
