Brand Name : | ANGELS |
Model Number : | Zimmer Screw-Vent® |
Certification : | TUV CE, ISO13485, ISO9001 |
Price : | USD8~12/pc, included screw |
Payment Terms : | T/T, Western Union, MoneyGram |
Supply Ability : | 500,000pcs/month |
Delivery Time : | 3~5 days |
Zimmer Screw-Vent® UCLA All-Plastic Castable Abutment Compatible
NP 3.5mm/ RP 4.5mm/ WP 5.7mm (Engaging & Non-Engaging)
Material:
Pastic Castable
Made of a totally castable material for the stable retention of modelling materials, resins or waxes by means of two flat surfaces that stabilize the lightening and loosening movements during production of the structure or during clinical use.
Approved by CE, ISO 9001, ISO 13485

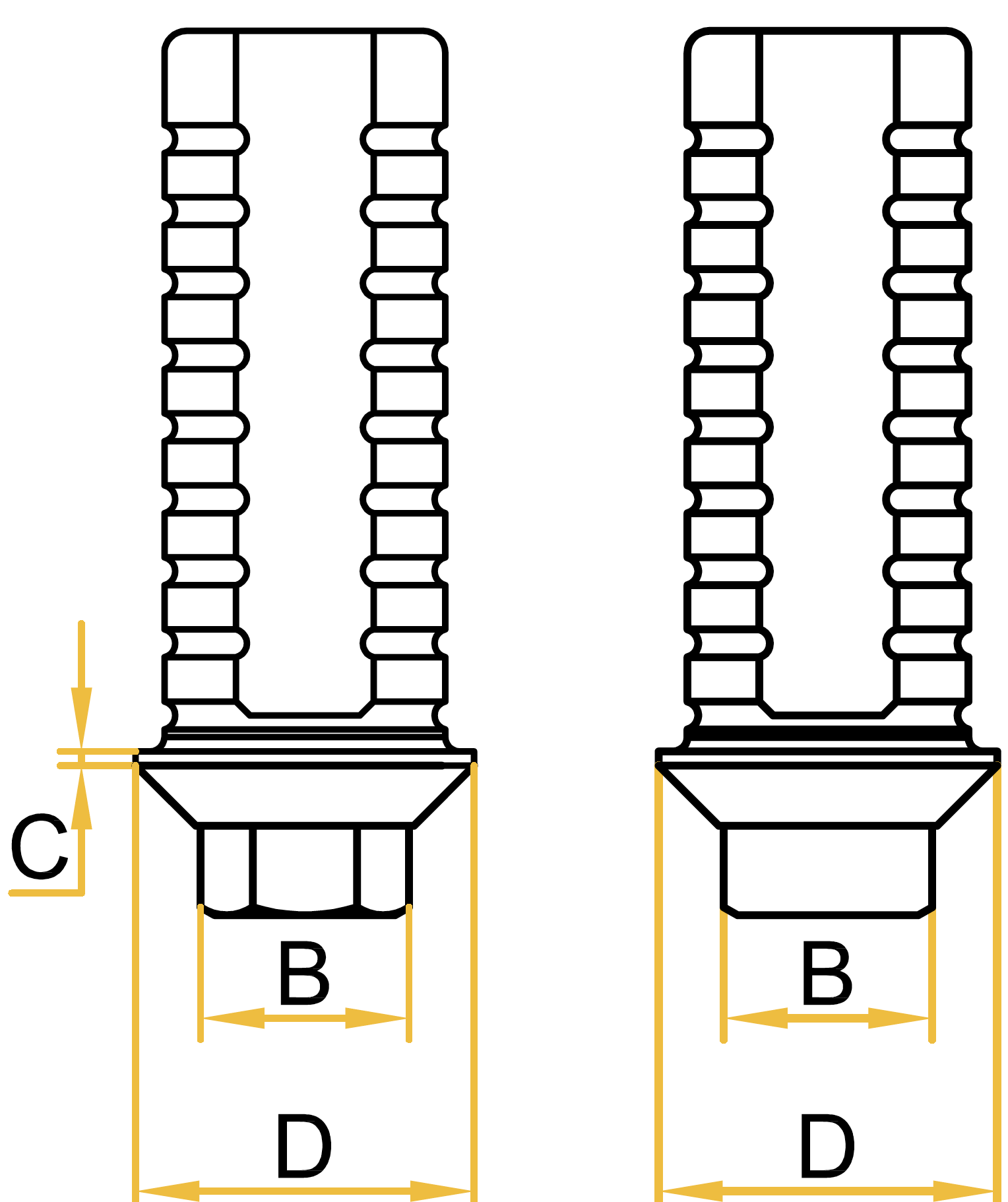

CASTABLE | B | C | D | |||
28.017 | NP | Non-engaging | Circular | 0,70 | 4,70 | |
29.017 | NP | Engaging | Hex.2,42 | 0,70 | 4,80 | |
28.018 | RP | Non-engaging | Circular | 0,70 | 5,70 | |
29.018 | RP | Engaging | Hex.2,42 | 0,70 | 4,70 | |
28.019 | WP | Non-engaging | Circular | 0,70 | 4,80 | |
29.019 | WP | Engaging | Hex.3,05 | 0,70 | 5,70 |
Points of Zimmer Tapered Screw-Vent® (TSV), Screw-Vent® Full Plastic Abutment:
UCLA Full Plastic on abutments are fabricated with a machined gold abutment/implant interface and a plastic tube processed on to the gold portion of the UCLA. Indexed (hexed) UCLA's (Fig.7, top row) are available for all three platform diameters (3.5, 4.5, 5.7mm) while non indexed UCLA's (Fig.7, bottom row) are only offered for 3.5 and 4.5mm platform diameters. Each abutment is packaged with a final fixation screw to make a complete kit.
![]() |
