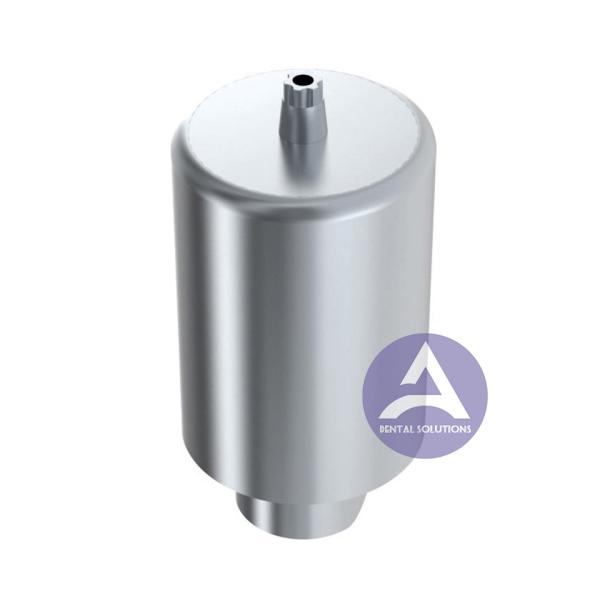

Dentsply Ankylos® Implant Internal Titanium Premill Blank 14mm Engaging

Dentsply Ankylos®

3.5mm/ 4.5mm/ 5.5mm/ 7.0mm

Material:
Ti 6AI-4V ELI (Supply from Germany)

Feature:

* Simply efficiency
* Precision machined up to ± 5µm
* Benefit from a faster and controlled turnaround time
* Different diameter available of 10mm, 14mm

Pre-milled Abutment Blanks, you can now produce titanium customised abutments with your milling equipment.
Boost your efficiency by using your milling machines and benefit from all major implant connections.

Approved by CE, ISO 9001, ISO 13485

* We also can provide another 3 type of premill as above picture shown. Welcome to further inquire. Thanks.

Points of Dentsply Ankylos® C/X Implant:

Ankylos® C/X implants are machined from grade 2 titanium with a parallel wall geometry. A outside thread pattern consists of progressively deeper threads towards the apical of the implant and squared thread edges. Surface roughening is achieved through a proprietary process called "Friadent® plus". The surface of the implant is grit blasted, followed by immersing the implant in hot acid.

Four implant diameters (Fig.2) are offered for this implant system. Each implant diameter is color and letter coded on the individual implant packaging. 3.5mm diameter implants are coded red and the letter "A", 4.5mm diameter implants are coded yellow and the letter "B". 5.5mm implants are coded blue and the letter "C" while 7.5mm implants are marked green and the letter "D". 3.5, 4.5 and 5.5mm diameter implants are available in five lengths of 8, 9.5, 11, 14 and 17mm (Fig.3). Only 7.5mm diameter implants are not offered as a 17mm length version. Implants are packaged with an already installed fixture mount and a separate cover screw.

         ANGELS Dental Implant Solutions Center is one of the national high-technique enterprise and one of the professional milling center in China, which offers the dentists the best solutions of the highest quality and accuracy in implantology. We integrate R&D, manufacture and sales, and mainly engages in dental implant system, implant surgical tools and digital implant repair products.

        Our focus is on Being a reliable and reputable dental implant parts manufacturer and improving the lives of patients and dentists around the globe by providing complete top quality, innovative and affordable solutions that exceed standards of excellence in the rapidly growing field of dental implantology.

        Our products have passed the test and certification of the German TUV testing agency, and have the ISO13485 certificate. The raw materials used are all major brands in Germany and the United States, which can guarantee better quality, so you have no worries. We have more than 10 precision machining machines, which can respond quickly and meet your order requirements.
