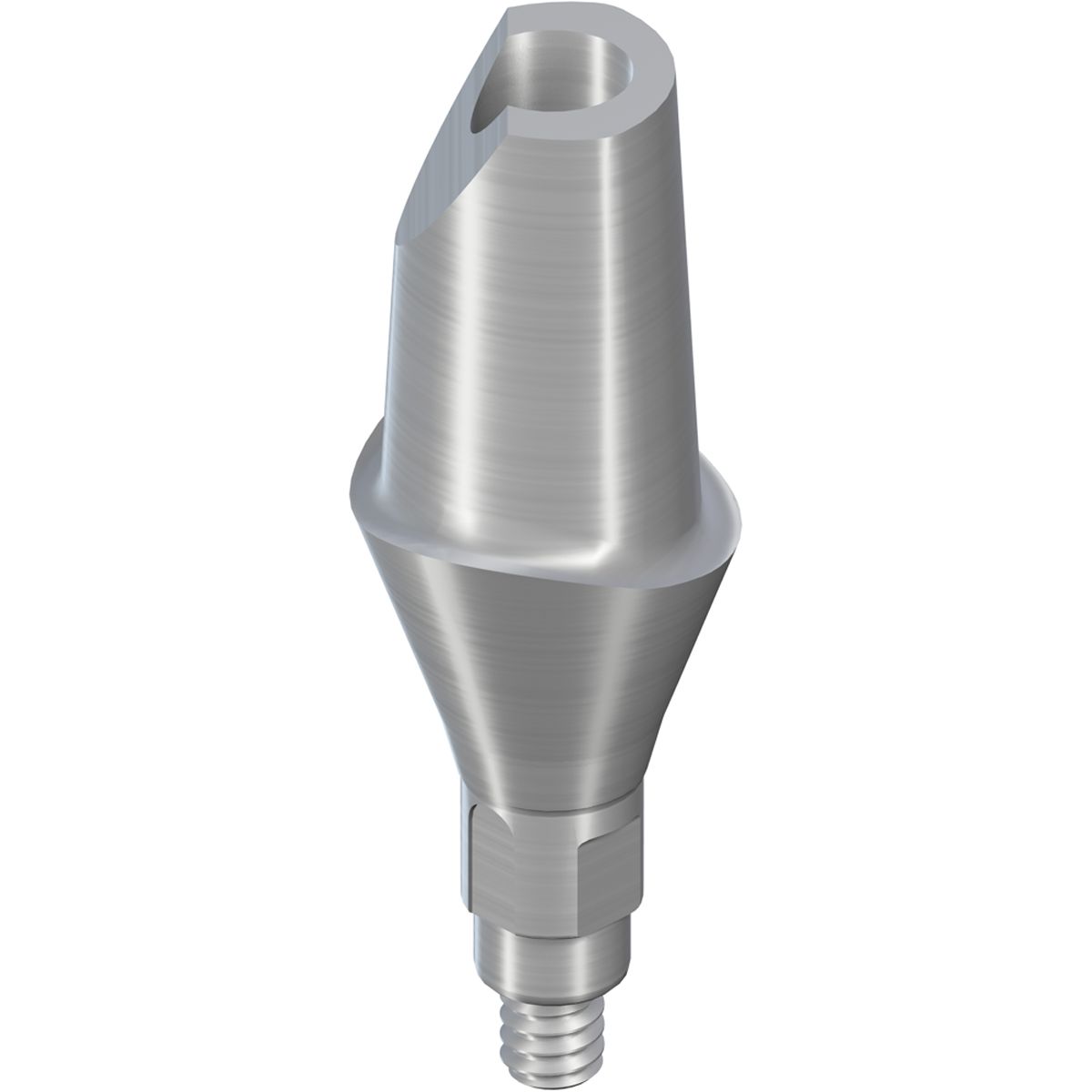

Straumann ITI BL NC Anatomic Abutment - D 6.4mm, GH 2/3.5mm

ITI Straumann Bone Level® Tooth Implant Abutment Titanium Straight Anatomic Abutment Compatible RC 4.1, D:6.4mm, GH:2/3.5mm

Desciption:

This staight abutment comes with a screw that takes a Straumann-Torx driver

Diameter: 6.4mm

Collor Height Option: 2mm / 3.5mm

Material:
Ti 6AI-4V ELI (Supply from Germany)

Reference Number:

022.4102

022.4104

Feature:

* Titanium interface abutment
* 1pc Screw Included

* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility

* Can production Custom interface

Approved by CE, ISO 9001, ISO 13485

Points of ITI Straumann Bone level Straight Abutment:

Regular connection (RC) platform diameter abutments can be categorized in to four groups, anatomic, gold (UCLA), ceramic and "cementable". Anatomic, gold and ceramic abutments are intended to be selected and modified extraorally on a master model after a fixture level impression (direct, indirect). "Cementable" abutments are envisaged to be installed on to the implant and impressed with the abutment level impression technique, much like solid abutments for tissue level implants.

Cementable abutments are not cemented in to the implant as the name might suggest but screwed on to the implant like other abutments for bone level implants. Twelve different color coded "cementable" abutment versions are produced, combining two different emergence profiles (Fig.11, left 5.0mm gray, 6.5mm brown) and three collar heights (Fig.11, bottom row 1, 2, 3mm) with two abutment portion heights (Fig.11, right, 4mm, 5.5mm). A color band etched on to the coronal portion of the abutment indicates the abutment portion height (4mm black, 5.5mm white).

         ANGELS Dental Implant Solutions Center is one of the national high-technique enterprise and one of the professional milling center in China, which offers the dentists the best solutions of the highest quality and accuracy in implantology. We integrate R&D, manufacture and sales, and mainly engages in dental implant system, implant surgical tools and digital implant repair products.

        Our focus is on Being a reliable and reputable dental implant parts manufacturer and improving the lives of patients and dentists around the globe by providing complete top quality, innovative and affordable solutions that exceed standards of excellence in the rapidly growing field of dental implantology.

        Our products have passed the test and certification of the German TUV testing agency, and have the ISO13485 certificate. The raw materials used are all major brands in Germany and the United States, which can guarantee better quality, so you have no worries. We have more than 10 precision machining machines, which can respond quickly and meet your order requirements.
