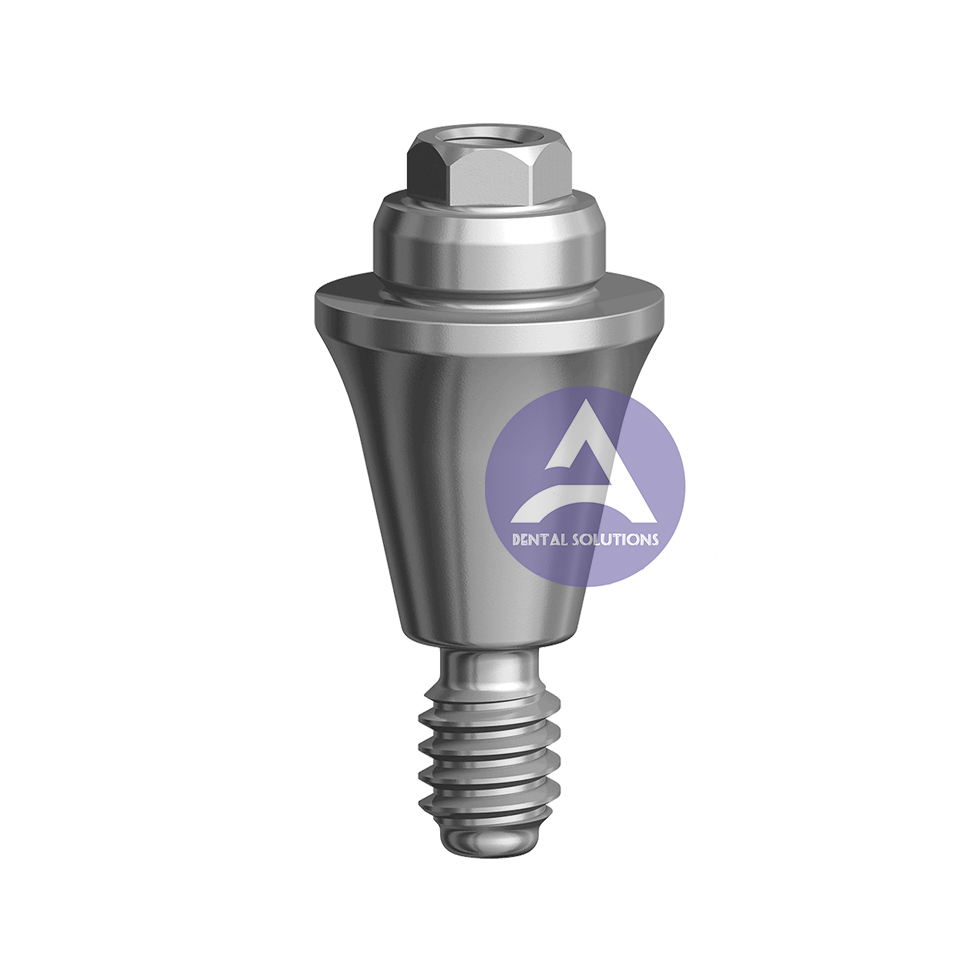

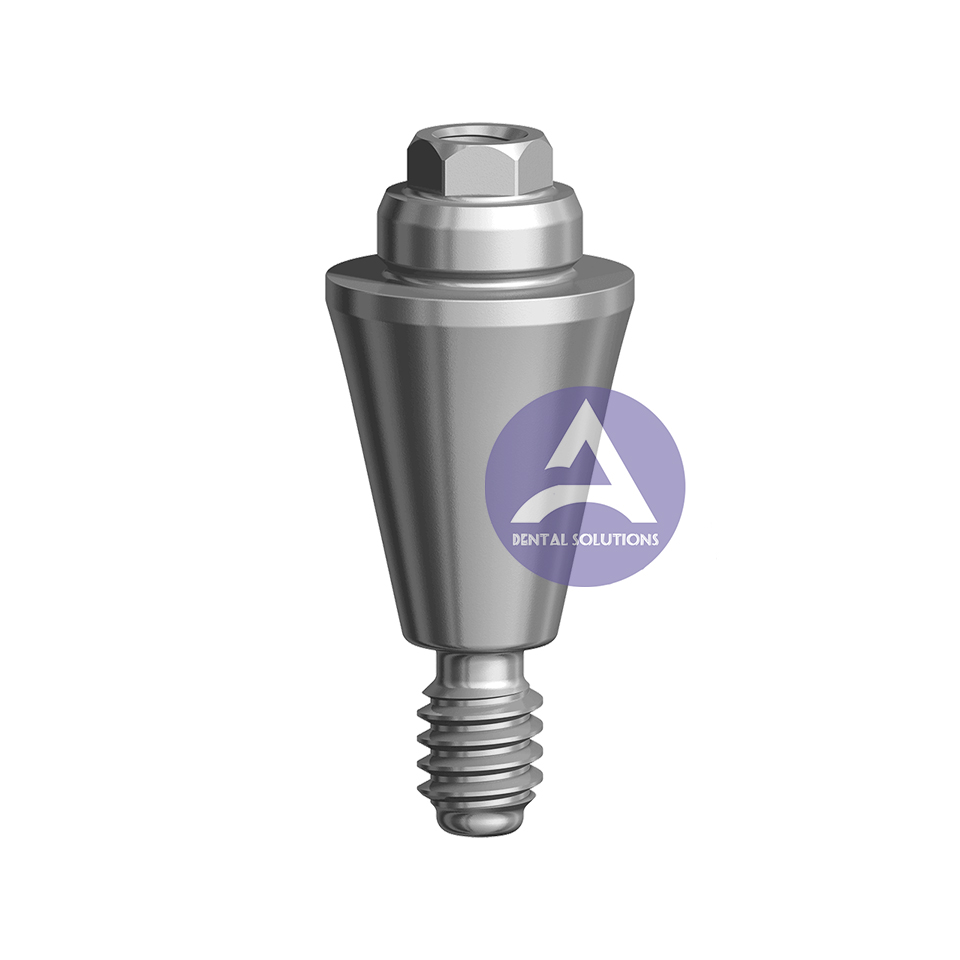

Nobel Biocare Multi-unit Straight Abutment Xeal Conical

Connection RP 1.5/2.5/3.5/4.5 mm

Desciption:

This staight abutment comes with a screw that takes a Nobel-Torx driver

Premanufactured abutment to be directly connected to an endosseous dental implant for use as an aid in prosthetic rehabilitation.

Indicated for multiple-unit reconstructions when screw retained prosthetics is preferred.

Available as straight or angled (17° and 30°) and in a selection of collar heights.

Material:
Ti 6AI-4V ELI (Supply from Germany)

Reference No.

RP, GH=1.5mm, 36616,38879,300172

RP, GH=2.5mm, 36617,38882,300175

RP, GH=3.5mm, 36625,38885,300178

RP, GH=4.5mm, 36626,38887,300180

Feature:

* Titanium interface abutment
* 1pc Screw Included

* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility

* Can production Custom interface

Approved by CE, ISO 9001, ISO 13485

Brånemark System™, NobelSpeedy™

All of the implants in this product group are machined with a external indexing feature (Fig.3) in four implant/abutment platform diameters of 3.5 (NP, narrow platform), 4.1 (RP, regular platform), 5.0 (WP, wide platform). The indexing feature consists of a external hexagon design of platform diameter specific dimensions, making prosthetic components incompatible from platform diameter to platform diameter. No color coding is evident for platform diameter identification on any of the external hex implants.

Brånemark System™ MK III TiUnite® implants (Fig.4) are offered in one body geometry, parallel walled with a diminishing thread depth toward the apical of the implant. A 0.7mm machined collar separates the implant/abutment interface from the TiUnite® treated surface area of the implant. Cutting flutes incorporated at the apex of the implant (Fig.5) give this implant design self tapping capabilities. 3.5mm platform implants are produced in four (10, 11.5, 13, 15mm) lengths and one implant body diameter of 3.3mm while 4.1 implant/abutment platform diameter implants are produced in two implant body diameters of 3.75 and 4.0mm

and three additional lengths of 7, 8.5 and 18mm. 5.1mm platform diameter implants are offered in one body diameter of 5mm and seven lengths.(7, 8.5, 10, 11.5, 13, 15 and 18mm) . Although each implant in this product group is actually 0.5mm shorter than advertised and the advertised length does not include the 0.7mm height of the indexing hex at the top of the implant. No 6mm diameter implant is available within this group. Cover screws are included in this product group.

Brånemark System™ MK III Groovy implants (Fig.6) are offered in one body geometry, parallel walled with a diminishing thread depth toward the apical of the implant and a secondary groove underneath each thread to enhance initial stability. The implant surface treatment extends from the edge of the implant/abutment junction uniformly to the apex without any machined collar. Cutting flutes incorporated at the apex of the implant (Fig.7) give this implant design self tapping capabilities. 3.5mm platform implants are produced in four (10, 11.5, 13, 15mm) lengths and one implant body diameter of 3.3mm while 4.1 implant/abutment platform diameter implants are produced in two implant body diameters of 3.75 and 4.0mm and three

additional lengths of 7, 8.5 and 18mm. 5.1mm platform diameter implants are offered in one body diameter of 5mm and seven lengths (7, 8.5, 10, 11.5, 13, 15 and 18mm). Although each implant in this product group is actually 0.5mm shorter than advertised and the advertised length does not include the 0.7mm height of the indexing hex at the top of the implant. No 6mm diameter implant is available within this system. Cover screws are not included in this product group.
